Time Series Manager

From TALSIM Docs

This page is a translated version of the page Zeitreihenverwaltung and the translation is 92% complete.
Outdated translations are marked like this.
Other languages:
Deutsch • ‎English

Time series can be stored in TALSIM-NG's own time series manager, where they are classified by the type of data and the station they belong to. There they can be viewed graphically and edited tabularly. A basic statistics' tool, which can calculate average values for a defined period of time as well as other statistics, is also integrated in the time series manager.


Opening the Time Series Manager

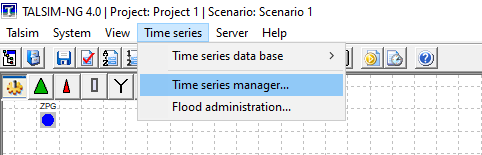

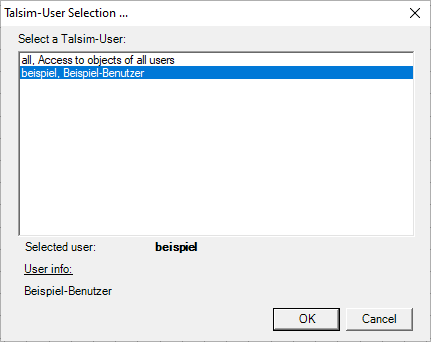

The time series manager can be accessed via the Menu bar → Time series → Time series manager. The Talsim-User Selection window, where you are required to choose a user to proceed, appears. If you want to create and edit time series, you should choose your username and confirm with OK. If you log in using another username, you can only see the stations and time series, but you cannot edit or delete them.

Datei:Zeitreihe001EN_.png Zeitreihe002 EN.png

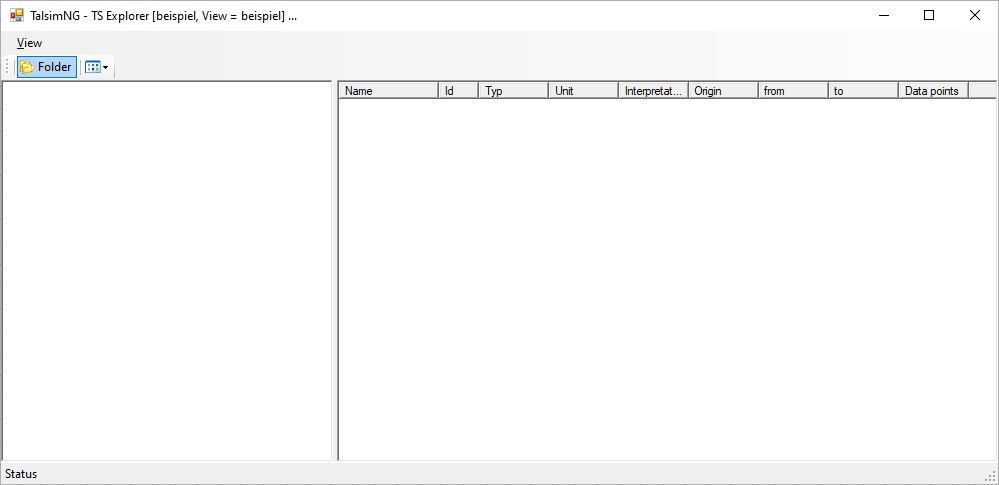

If you are logged in with your username and have not created any time series yet, an empty TalsminNG - TS Explorer opens. This explorer can be customized using View, Folder, as well as the folder icon.

Zeitreihe003 EN.png


Create New Station

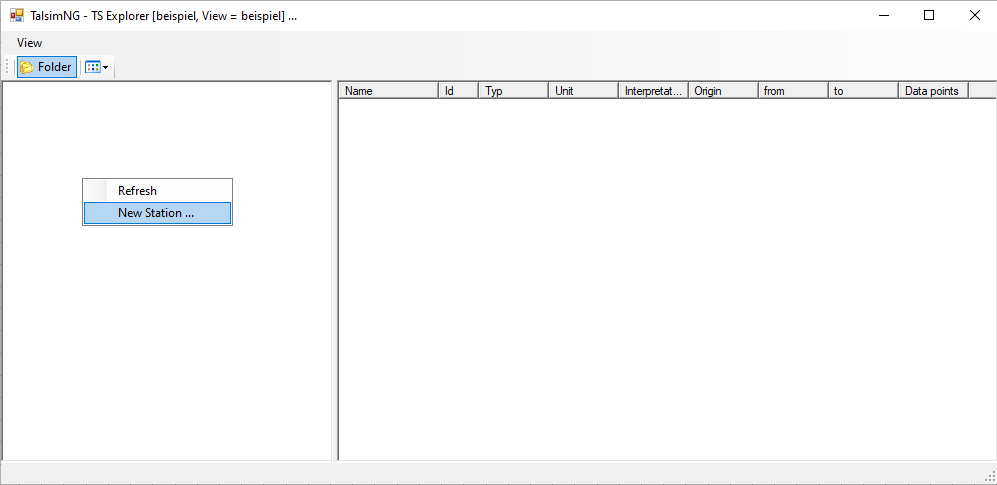

Time series are principally assigned to stations, e.g. measuring stations. For this reason a station should be created first. To do this, right-click on the Explorer → New Station. A window, where you can enter the name of the station and confirm with OK, will appear.

Zeitreihe004 EN.png Datei:Zeitreihe005_EN.png

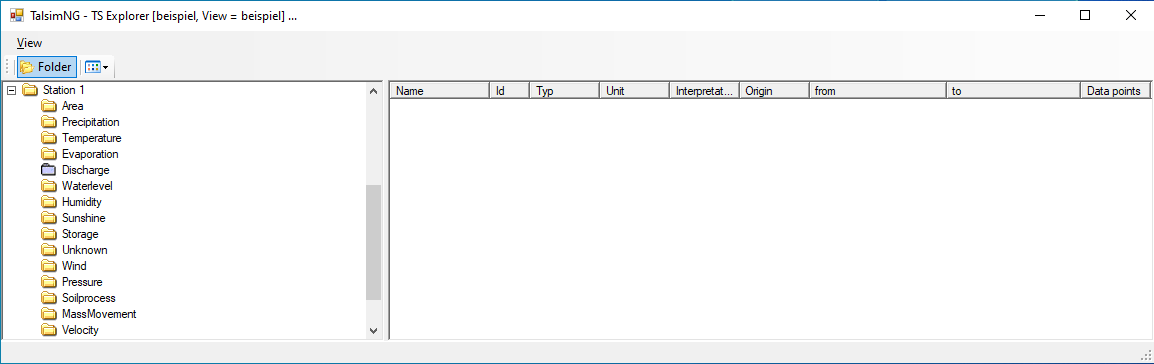

Subsequently, a new station, as well as 15 subfolders are created. These subfolders present the different types of the hydrological, hydrometeorological, or reservoir-dependent variables that can be saved as time series in the TS Explorer.


Zeitreihe006 EN.png


You have a choice of the following options when you right-click on the new station in the explorer.

New Station A new empty station with 15 subfolders is created.
Edit Station The dialog window Edit of a Talsim time series station, in which information about the selected station can be edited, is opened.
Delete Station The marked station and all associated time series are deleted. This operation cannot be undone.
Copy to Clipboard The list of time series associated with the station as well as their metadata is copied to the clipboard.
New Time Series A new time series associated with the selected station is created.
Release Edit-lock Releases the edit-lock of the station, so it can be edited by another user.


Create New Time Series

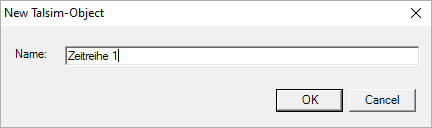

To create a time series, right-click on the Station → New Time Series in the time series explorer. A window will open, prompting you to enter the name of the new time series. Confirm with OK.


The following attributes are displayed for each time series in the explorer:

Name Name of the time series.
ID Identification number of a time series. ID corresponds to the ID of the binary file, stored in the system data. Caution: Not to be confused with the ID of a simulation in the model and on the server.
Type Hydrological, hydrometeorological, reservoir-dependent or geological variable. With this setting the time series is assigned to one of the 15 subfolders of the station. Default value: discharge.
Unit Unit of the values. Default value: m³/s.
Interpretation Information about the time series values, i.e. how to understand the timestamp and the value stored in it. Caution: wrongly set interpretations inevitably lead to incorrect results. For example, precipitation [mm] is usually a sum per timestep. Default value: Current_value (linear_interpolation)
Origin Origin of the time series. Default value: measured.
from Date and time of the start of the time series. Default value: Day and time of creation.
to Date and time of the end of the time series. Default value: Day and time of creation.
Data points Number of data points. Default value: 0


Zeitreihe008 EN.png

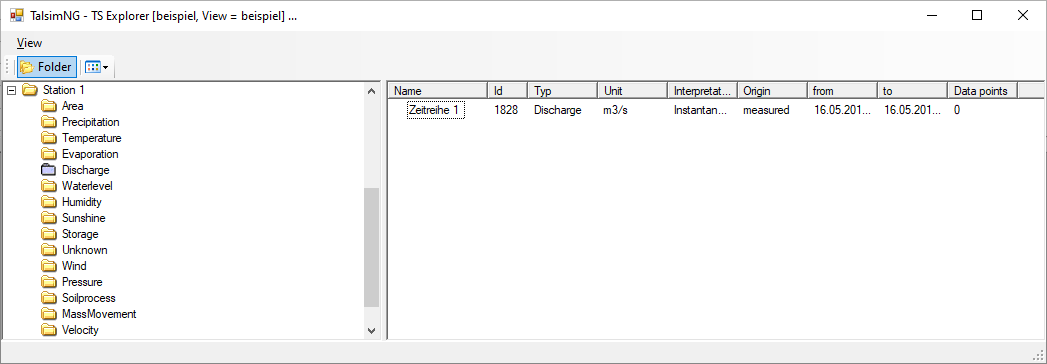

The created time series is assigned the chosen name and a consecutive ID number. The other attributes are filled with the default values.

You can use the following buttons if you right-click on the time series in the explorer.

Edit Time Series The selected time series can be edited.
Chart The time series can be displayed as a graph over time or as a duration curve.
Edit Values Values with date are added to the selected time series. Values can also be edited or deleted.
Statistics Calculates a statistical overview of the time series.
Import Time Series An existing time series can be imported.
Export Time Series The selected time series can be exported.
Delete Time Series The selected time series is deleted. This operation cannot be undone.
Release Edit-lock Releases the edit-lock of the time series, so it can be edited by another user..
Refresh Attributes After adjusting the attributes of a time series, those attributes are updated in the explorer.


Edit Time Series

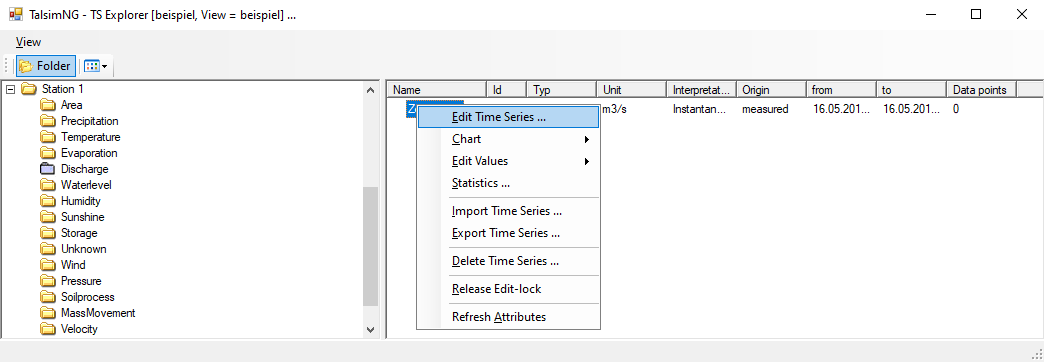

To adjust the attributes of a time series, right-click on Time Series → Edit Time Series in the time series manager.

Zeitreihe009 EN.png

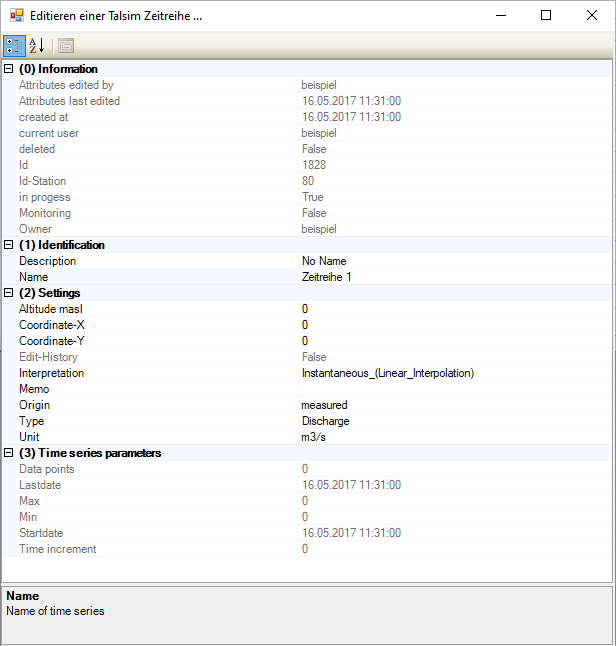

The following dialog window, where you can edit the attributes, opens. The attributes assigned to identification and settings, which are displayed in black, can be adjusted with a double-click. By clicking OK all time series attributes can be saved.

Zeitreihe010 EN.png

Identification Description Description of the time series
Name Name of the time series
Settings Altitude masl Height of the measuring station in meters above sea level
Coordinate-X X-coordinate of the measuring station
Coordinate-Y Y-coordinate of the measuring station

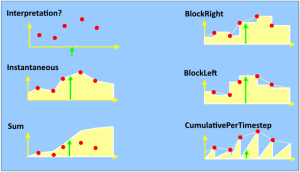

Interpretation Information about the time series values, i.e. how to understand the timestamp and the value stored in it. Caution: wrongly defined interpretations inevitably lead to incorrect results. Choice of:
00036 EN.png
  • BlockLeft_(value_right)
  • BlockRight_(value_left)
  • Instantaneous_(Linear_Interpolation)
  • Cumulative
  • CumulativePerTimeStep
  • Undefined


Memo Description of the origin of the time series and other additional information
Origin Origin of the time series

Choice of:

  • derived
  • measured
  • imported
  • manual
  • simulated
  • miscellaneous
  • synthetic
Type Hydrological, hydrometeorological, reservoir-dependent or geological variable

With this setting the time series is assigned to one of the 15 subfolders of the station. Choice of:

  • area
  • discharge
  • evaporation
  • humidity
  • mass movement
  • precipitation
  • pressure
  • soil process
  • storage
  • sunshine
  • temperature
  • unknown
  • velocity
  • water level
  • wind
Unit Unit of the variable

Choice of: ?,empty, number, class, mm/m, percent, h/d, 0/00, ml/l, mm, m, cm, km, hm, dm, l/ha, l/km², l/m², mNN, m², km², ha, cm², mm², dm², m³/m, m³, Tsd. m³, Mio. m³, l, hl, km³, cm³, mm³, m/s, mm/d, mm/h, mm/min, l/s/km², m/h, m/d, l/s/ha, m/s², m³/s, l/s, m³/d, m³/h, l/h, l/d, °C, kg, g, mg, t, s, min, h, d, w, mon, a, Datum, A, bar, pa, hpa, Grad, Rad, kg/m³, mg/l, g/l, l/kg, ml/g, Grad_C, kg/s, y/n


Time Series Values

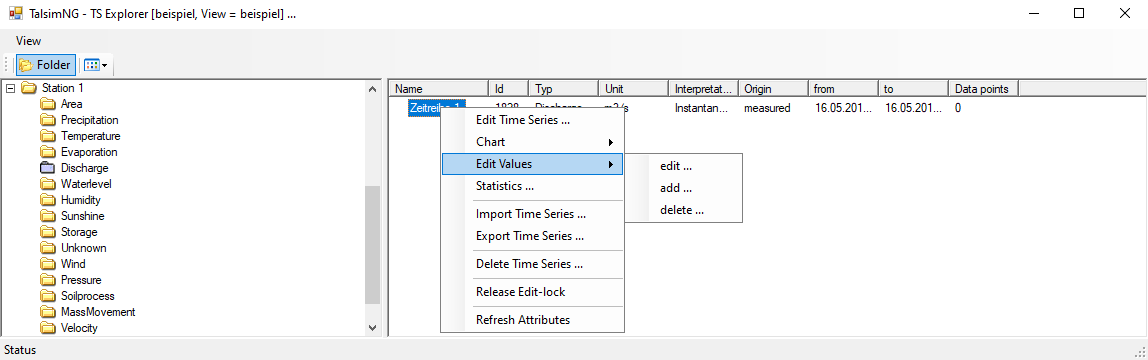

After a new time series is created and edited, values can be added to it. To do this, right-click on the Time Series → Edit Value. If a time series with values already exists, the values can be edited or deleted.


Zeitreihe0011 EN.png

You can use the following buttons:

Edit Selected values of the time series can be edited.
Add Values can be added to the time series.
Delete Selected values of the time series can be deleted. This operation cannot be undone.


Add Values to Time Series

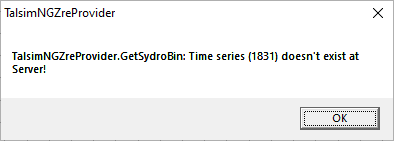

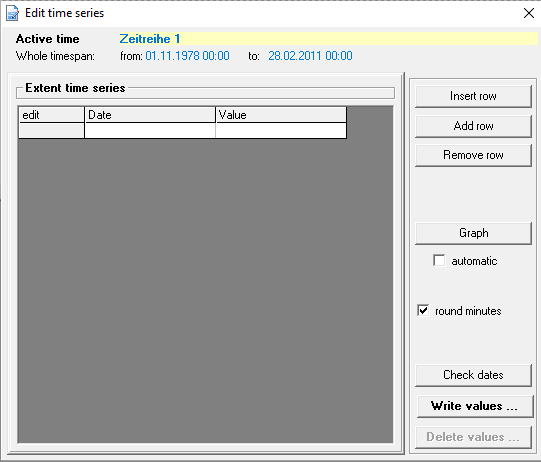

To add new values to the time series, click on add. The following TalsimNGZreProvider window opens. This indicates that the time series does not contain any values yet, and is, therefore, not stored on the server on in the database. By clicking OK the window for editing the time series values opens.

Datei:Zeitreihe012_EN.png Zeitreihe013 EN.png


Here you can use the following buttons:

Insert Row A row is inserted above the selected cell.
Add Row A row is added to the end of the time series.
Remove Row The selected row is removed.
Graph The time series is displayed graphically.
Check dates The date of the time series is checked. This means that the date must be ascending in time.
Write values The time series and its values are stored on the server and in the database. Additionally, a binary file, named after the ID of the time series, is created in the system data.
Delete values All values are deleted.

The 'Edit time series' window shows the active time series, as well as the date, which by default corresponds to the date of creating the time series, unless it has been manually changed. Here you can manually enter a date and its corresponding value. You can also copy a time series with dates and values e.g. from Excel and click on the first cell of the table and paste it there (key combination: Ctrl+V).

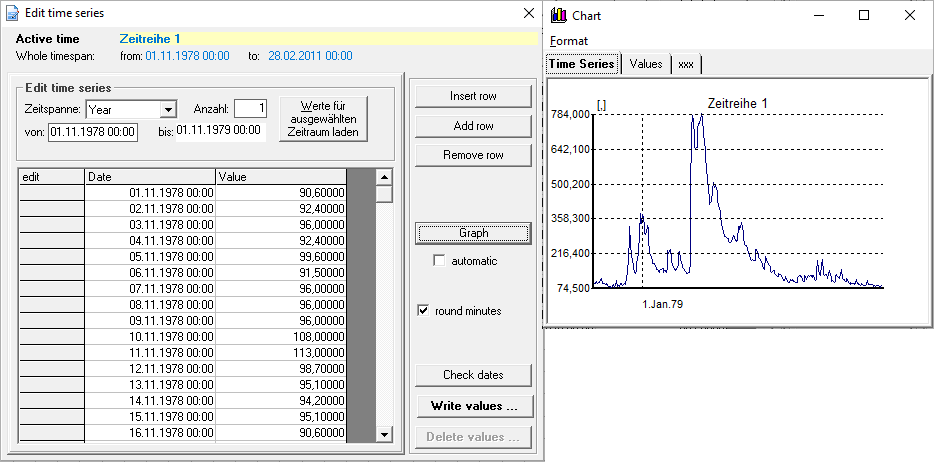

When the values are inserted, the time series can be displayed using Graph.

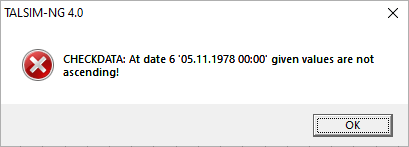

In the next step the date is checked. If the dates are ascending, a window with "Check successful!" will appear. Otherwise an error message will be displayed.

Datei:Zeitreihe015_EN.png Datei:Zeitreihe016_EN.png

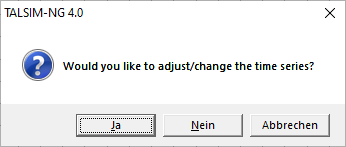

If all values are complete and the date is successfully checked, the values are written. In the appearing window, click Yes to confirm, No or Cancel to cancel.

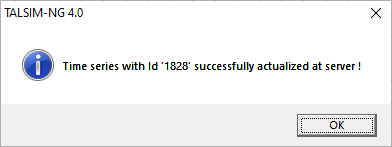

The implementation of the values into the time series has been successful if the following confirmation window appears. Completing this step, saves the time series in the time series database as well as in the system data as a binary file, and exports the time series to the server. The editing window can now be closed.



Edit Values of the Time Series

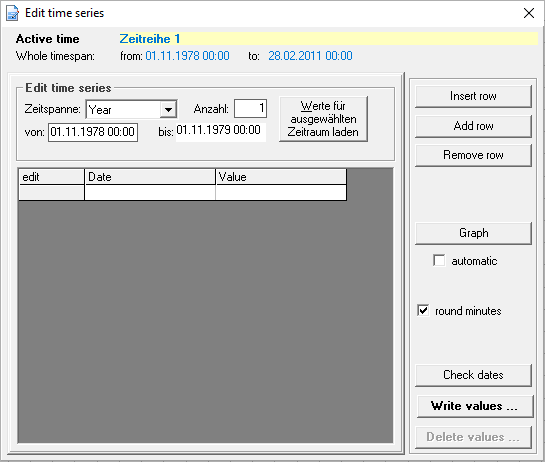

Time series can be edited by right-clicking on the Time Series → Edit Values → Edit. The active time series and its appropriate date is displayed. Now you can select the time period for which you want to make changes to load it into the edit window. The data will be displayed accordingly. With the other buttons you can edit the time series as described under Add Values to Time Series.

Zeitreihe019 EN.png


Display Time Series Graphically

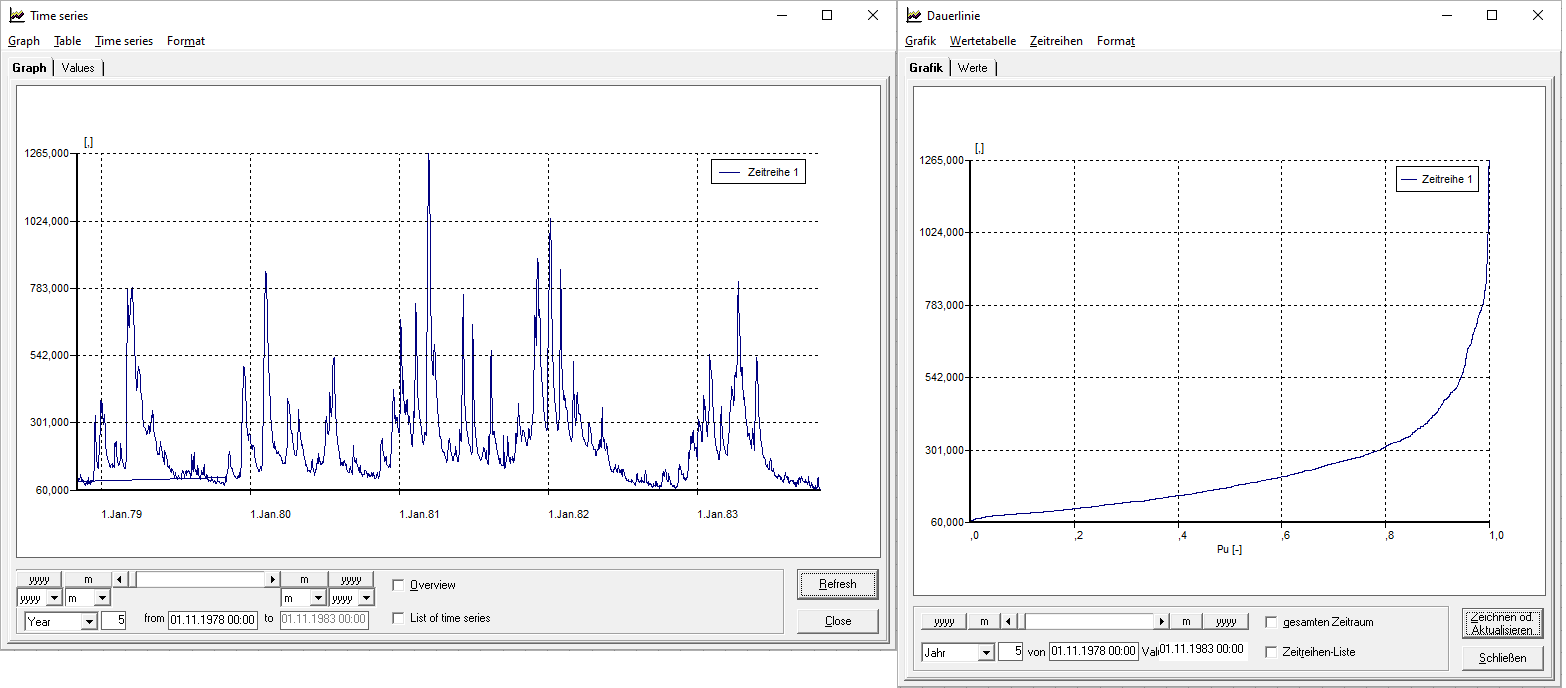

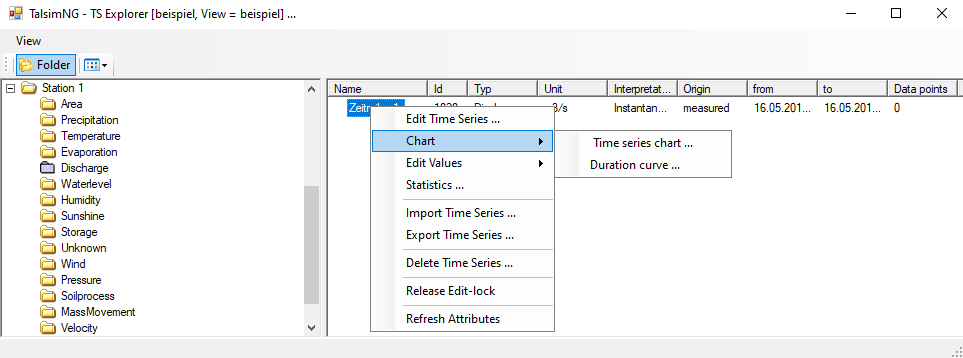

A time series can be displayed graphically by right-clicking on Time Series → Charts. You have the choice between a hydrograph (Time series chart) and a duration curve.


Zeitreihe020 EN.png Zeitreihe021 EN.png


Evaluate Time Series Statistically

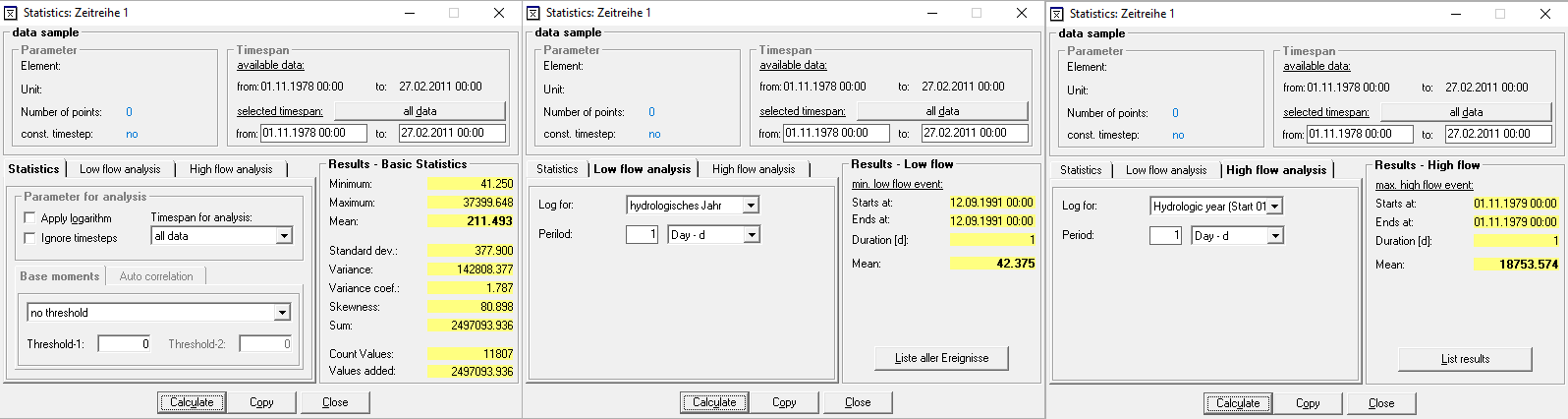

Right-clicking Time Series → Statistics opens a statistics tool with which you can calculate severlal statistical measures for a predefined period. Furthermore, you can perform a low water or flood analysis. The results are displayed once you click on Calculate after entering the required data.

Zeitreihe022 EN.png


Import Time Series

Export Time Series

Delete Time Series

Release Edit-Lock
